Product Details
Place of Origin: China
Brand Name: SDLIFT
Certification: CE ISO9001 SGS BV
Model Number: YBC0.1-8
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD1980 - 3800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 3800 units per year
Application: |
Single Post Aerial Work Platform Lift For One Man Lift |
Warranty: |
24 Months |
Lifting Height: |
4m - 10m |
Table Size: |
600*600mm |
Min. Lifting Height: |
1800mm |
Overall Dimensions: |
1260×800×1800mm |
Load Capacity: |
100kg |
Voltage: |
110v 220v 240v 380v Optional |
Feature: |
Easy Operation Safety Convenience |
Application: |
Single Post Aerial Work Platform Lift For One Man Lift |
Warranty: |
24 Months |
Lifting Height: |
4m - 10m |
Table Size: |
600*600mm |
Min. Lifting Height: |
1800mm |
Overall Dimensions: |
1260×800×1800mm |
Load Capacity: |
100kg |
Voltage: |
110v 220v 240v 380v Optional |
Feature: |
Easy Operation Safety Convenience |

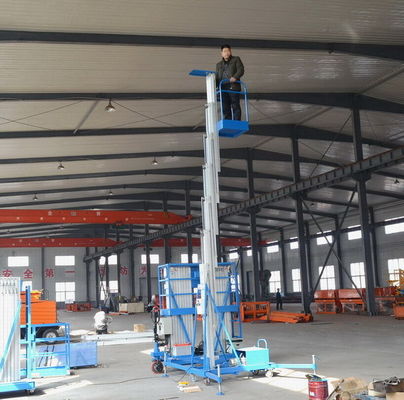

Single Post Aerial Work Platform Lift for One man Lift
Single post aerail work platform lift for one man lift
AC 110V 220V 240V
Capacity 100kg , Lifting Height 4-8m
Features
1. new design aluminium aerial work platform
2. good outlooks and strong structure
3. light weight and easy to move
4. Electric & Hydraulic control
5. Imported pump station
6. Adjusted working platform basket
7. used for the layout, decoration, lighting maintenances for top grade hotels, meeting places and big department stores and so on
8.CE ,ISO approved Best price & fast delivery
Product List
Model |
Load capacity |
Platform size |
Lift height |
Column |
Power |
Total dimension |
Weight |
YBC0.1-4 |
100kg |
600×600mm |
4m |
one |
1.5kw |
1200×800×1800mm |
280kg |
YBC0.1-6 |
100kg |
600×600mm |
6m |
one |
1.5kw |
1260×800×1960mm |
300kg |
YBC0.1-8 |
100kg |
600×600mm |
8m |
one |
1.5kw |
1260×800×1980mm |
340kg |
YBC0.1-10 |
100kg |
600×600mm |
10m |
one |
1.5kw |
1600×880×2180mm |
480kg |
Factory pictures:
The Certificate:
Our Services
1) We can design the customerized Mobile Aluminum Man Lift as per your requirement.
2) TheMobile Aluminum Man Lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
